High Security
Long Life
Quick Charge
Outdoor Installation

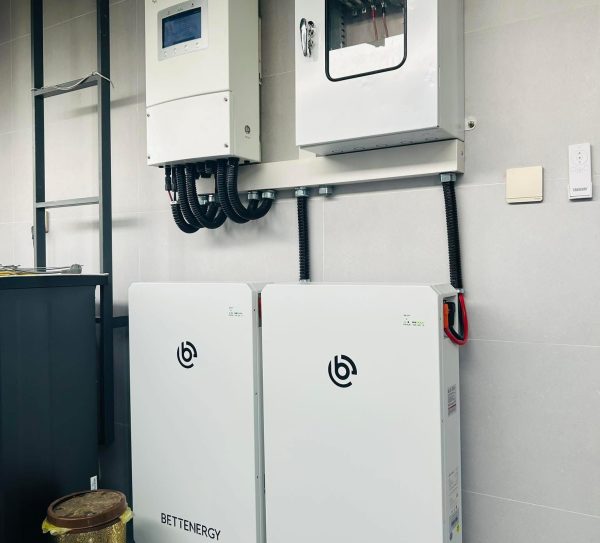

Powerwall is a compact home battery that reduces your reliance on the grid by storing your solar energy for use when the sun isn’t shining. You can add additional Powerwall units to your system to reduce your impact further and better prepare your home for power outages.
The Bettenergy app allows you to monitor your solar energy in real time. Set your preferences to optimize for energy independence, outage protection or savings. Support the grid when demand is high and during critical times, like when outages are likely, by sharing your excess energy. Control your system from anywhere with remote access and instant alerts.
- All-In-One
- POWERCUBE13.4K-H-T
- POWERCUBE14.3K-L-T
- ELEBOX-5K-HV
|
Energy Capacity
13.4 kWh
|
Installation
Floor Mount
Indoor or outdoor BAT Operating ambient temperature -20℃~50℃ Water and dust resistance |
|
Battery Type
LiFePO4
|
Certifications
Meets US and International
safety and EMI standards |
|
Standard voltage
268.8 Vdc
Voltage range
252~303 Vdc |
Warranty
10 years Temperature Control Liquid-cooled |
|
Cell capacity
50Ah
Max Charge/Discharge current
50A/75A (1C&1.5C) |
Dimension (H*W*D)
1382*670*188mm
Weight
170kg |
|
Energy Capacity
14336 Wh
|
Installation
Floor Mount
Indoor or outdoor BAT Operating ambient temperature -20℃~50℃ Water and dust resistance |
|
Battery Type
LiFePO4
|
Certifications
Meets US and International
safety and EMI standards |
|
Standard voltage
51.2Vdc
Voltage range 46.4~57.6Vdc |
Warranty
10 years
|
|
Cell capacity
280Ah
Max Charge/Discharge current 200A |
Dimension (H*W*D)
1169.5*640*197mm
Weight 150kg |
|
Energy Capacity
16076 Wh
|
Installation
Floor Mount
Indoor or outdoor BAT Operating ambient temperature -20℃~50℃ Water and dust resistance |
|
Battery Type
LiFePO4
|
Certifications
Meets US and International
safety and EMI standards |
|
Standard voltage
51.2Vdc
Voltage range 46.4~57.6Vdc |
Warranty
10 years
|
|
Cell capacity
314Ah
Max Charge/Discharge current 200A |
Dimension (H*W*D)
1169.5*640*197mm
Weight 150kg |
|
Energy Capacity
9600 Wh
|
Installation
Floor Mount
Indoor or outdoor BAT Operating ambient temperature -20℃~50℃ Water and dust resistance |
|
Battery Type
LiFePO4
|
Certifications
Meets US and International
safety and EMI standards |
|
Standard voltage
192Vdc
Voltage range 174~216Vdc |
Warranty
10 years
|
|
Cell capacity
50Ah
Max Charge/Discharge current 50A |
Dimension (H*W*D)
1169.5*640*197mm
Weight 113.5kg |
Application and advantages and disadvantages of LiFePO4 battery pack energy storage system
With the rapid development of wind energy, photovoltaic and other renewable energy generation industry, grid interference, pollution and randomness caused by the abandonment of light and wind problems are becoming increasingly serious. Since 2011, through the subtle development, tes
How do I calculate the cycles of a lithium battery? How to recycle lithium batteries
How do you calculate the number of cycles of a lithium-ion battery? How are lithium-ion batteries recycled? The number of cycles of a battery and the charge cycle are inextricably linked. This article explains how to calculate the number of cycles...
How to properly maintain a lithium iron phosphate battery pack
lithium-iron phosphate battery pack operating environment requirements Lithium iron phosphate battery pack operating environment requirements: according to the environmental requirements of the battery, the room temperature should not exceed 55 ℃, it is recommended that the ambien
