ELEBOX-5K-HV

  1. Home
  2. /
  3. ELEBOX-5K-HV

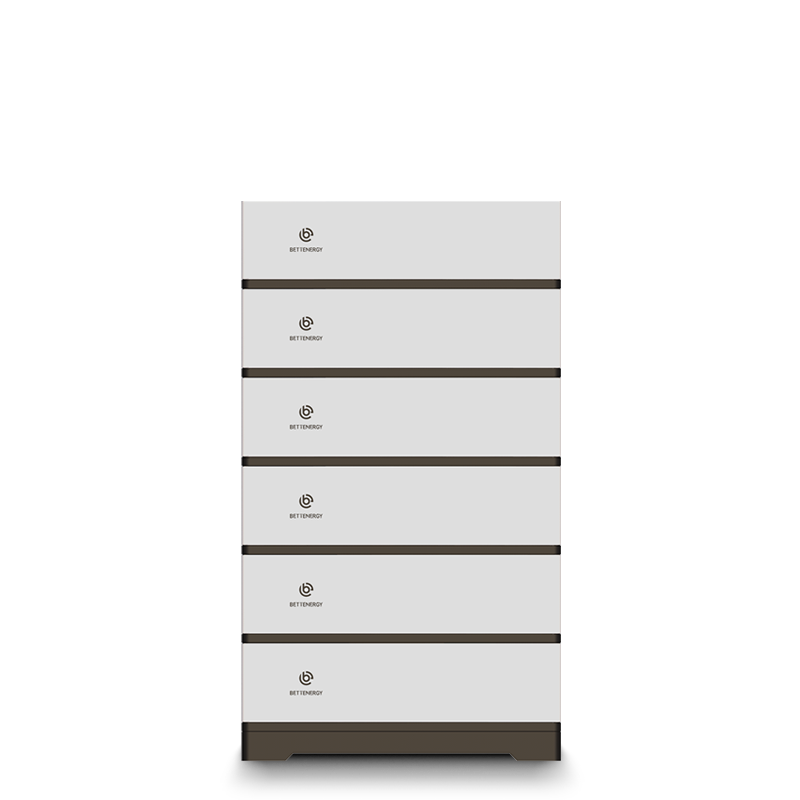

ELEBOX-5K-HV15.36kwh-51.2kwh

Stacked high voltage

①BDU

Battery control unit

②QuickInstallation

Pile up design, wirless
connection eachbattery
module with handy handle

③BDU

Ensure the system running
in higher safety self-adoption
design,systemrealie
automatic configuration for
differentmodule number in
series

④LFPBattery Module

Floor-standing solution
system capacityfrom
5.12kWh~25.61kWh

Intelligento
Optimizationo

Intelligent
Management



Scalable Design

High Capacity

APP Monitoring

Safe & Reliable

Long Service Life

Technical Support

Specification

Model ELEBOX-5K-HV
No. of Modules 3 4 5 6 7 8 9 10
Capacity (Kwh) 15.36 20.48 25.60 30.72 35.84 40.96 46.08 51.20
Nominal Voltage (V) 153.6 204.8 256 307.2 358.4 409.6 460.8 512
Operating voltage range (V) 141.6-170.4 188.8-227.2 236-284 330.4-397.6 283.2-340.8 377.6-454.4 424.8-511.2 472-568
Cells Type LFP
Max.Charge / Discharge Current (A) 50 A
Communication Port CAN
Cycle Life (80%DOD,25℃) ≥6000
Ingress Protection Rating IP 54
Dimension (H*W*D) mm 754*630*390 923*630*390 1092*630*390 1261*630*390 1430*630*390 1599*630*390 1769*630*390 1937*630*390
Weight (Kg) 177 229 281 333 351 397.5 489 541
Operating Temperature (℃) 0~50
Certification CE, IEC62619(Cell&Pack), MSDS, RoHS, UN38.3
Datasheet ELEBOX-5K-HV

The ELEBOX-HV15-50K from Bettenergy is an advanced high voltage lithium battery solution designed to meet the growing demands of both residential and commercial solar and energy storage applications. This ELEBOX LiFePO4 high voltage battery offers unparalleled performance, providing a scalable system with 3-10 module stacking, delivering 153.6V to 512V high power. Whether you need a 5kWh lithium battery for a small residential setup or a robust 30kWh LiFePO4 battery for larger energy storage needs, the ELEBOX-HV15-50K offers exceptional flexibility.

The LiFePO4 battery for solar energy storage ensures superior conversion efficiency, reduced costs, and greater energy capacity compared to traditional systems. It’s specifically designed for lithium ion batteries solar energy storage, offering faster charging and discharging cycles to meet high-load demands, making it one of the best lithium batteries for solar power storage.

With 100Ah lithium battery configurations, this system allows homeowners and businesses to store energy more efficiently, reducing their dependence on the grid while optimizing energy use. Bettenergy’s LiFePO4 20kWh solution ensures long-lasting performance, providing reliable backup power for everyday needs. The ELEBOX-HV15-50K is your ideal solution for efficient, sustainable, and scalable energy storage.
