Specification

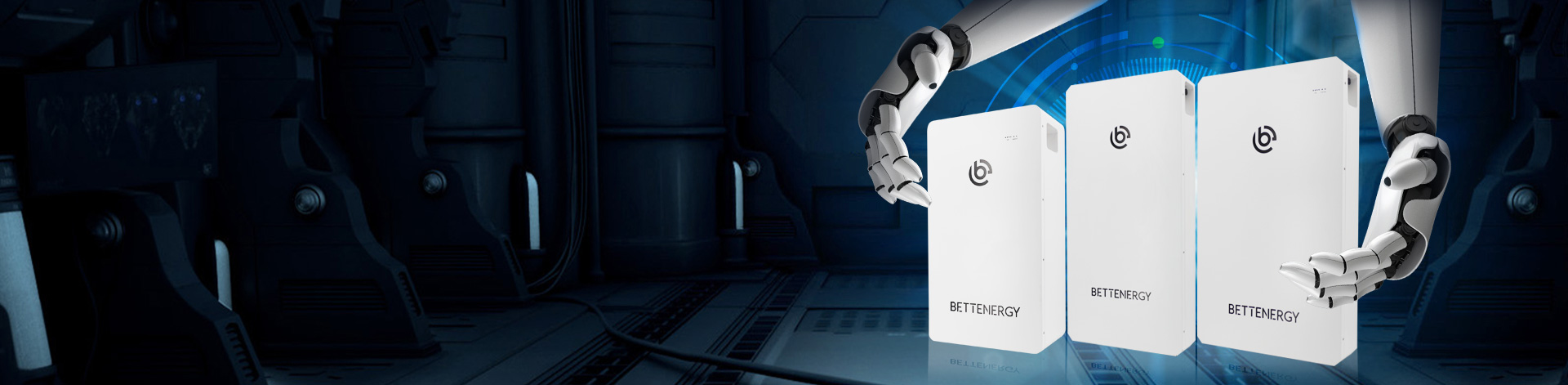

ELESHELL 2.56kwh-16kwh
Wall-mounted Design
Multiple capacity options
APP Monitoring
Safe & Reliable
Long Service Life
Technical Support
| Model | ELESHELL 2.56K | ELESHELL 10.2K | ELESHELL 16K | |
|---|---|---|---|---|
| Capacity | 2.56 kWh | 10.24 kWh | 16.07 kWh | |
| Nominal Voltage | 51.2 V | |||
| Max.Charge / Discharge Current | 100 A | 100 A | 157 A | |
| Communication Port | plug & play | RS485 | ||
| Cycle Life (80%DOD,25℃) | ≥ 6000 | |||
| Ingress Protection Rating | IP 20 | IP 65 | ||
| Dimension (H*W*D) | 360*365*155 mm | 871.1*519*133 mm | 750*412*235 mm | |
| Weight | 22.5 kg | 92 kg | 119 kg | |
| Certification | CE, IEC62619(Cell&Pack), MSDS, RoHS, UN38.3 | |||
Featured Products
Wall-Mounted Energy Storage Battery
51.2 V
10.24 kWh
Liquid-cooled Storage Battery
51.2 V
14.33 kWh | 16K
High Vlotage Liquid-cooled Storage Battery
268.8 V
13.4 kWh
All-in-One Energy Storage Battery
268.8V
13.4 kWh
